IQ X Duct - Cable Trough System

Protected cables. Accessible infrastructure.

IQ X-Duct is a GRP composite cable trough system that protects cables while providing access for inspection, maintenance and future additions.

The range combines the compact X-Duct 240, supplied with a lockable cover, with larger modular systems in sizes 350 to 1000. Contractors and engineers can select the capacity and configuration required for each installation.

Designed for installation and future access

Cable infrastructure needs to accommodate both the initial installation and changes over time. IQ X-Duct combines cable protection with access from above, making it easier to inspect cables, maintain the installation and add cables within the available capacity.

Applications

check Trackside cable routes
check Energy and utility installations
check Telecom and data infrastructure
check Industrial sites and technical facilities

Key benefits

check GRP composite construction
check Sizes from 240 to 1000
check Access from above for inspection and maintenance
check Lockable cover included with X-Duct 240
check Modular construction for sizes 350–1000
check Cover options and fittings to suit project requirements

Select the system for your cable route

X-Duct 240 - Compact cable routing with a lockable cover

X-Duct 240 is supplied as a complete GRP composite cable trough system with a lockable cover included. Its compact format supports surface-level cable routing where space is limited and continued access to cables is required.

check 240 mm internal width
check Lockable cover included
check A15 load class

X-Duct 350–1000 - Modular capacity for larger installations

The larger X-Duct models are assembled from two side elements and a bottom element. Covers are selected separately, and dividers and sliders can be added to suit the cable layout.

check GRP composite construction
check 350 and 600 are the standard sizes
check 800 and 1000 are available for larger projects and made-to-order requirements
check A15, B125 and D400 cover options
check Optional vertical dividers and horizontal sliders

Configure protection, separation and access

For X-Duct 350–1000, covers and fittings are selected to match the installation and its operational requirements.

Cover options

A15, B125 and D400 cover options support different loading requirements. Select the cover together with the trough configuration and installation arrangement to suit the project.

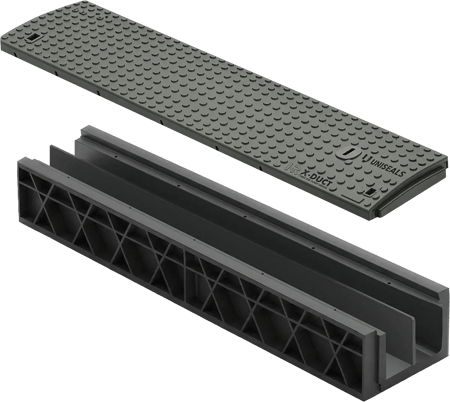

Vertical dividers

Divide the trough into separate compartments to organise different cable routes within the same installation.

Horizontal sliders

Add horizontal sliders to configure the internal cable arrangement to suit the project. X-Duct 240 is supplied with its own lockable A15 cover.

Composite strength. Flexible installation

The X-Duct range is manufactured in GRP composite, combining structural strength with resistance to moisture, salt and chemicals. The non-conductive material is suited to demanding cable infrastructure environments.

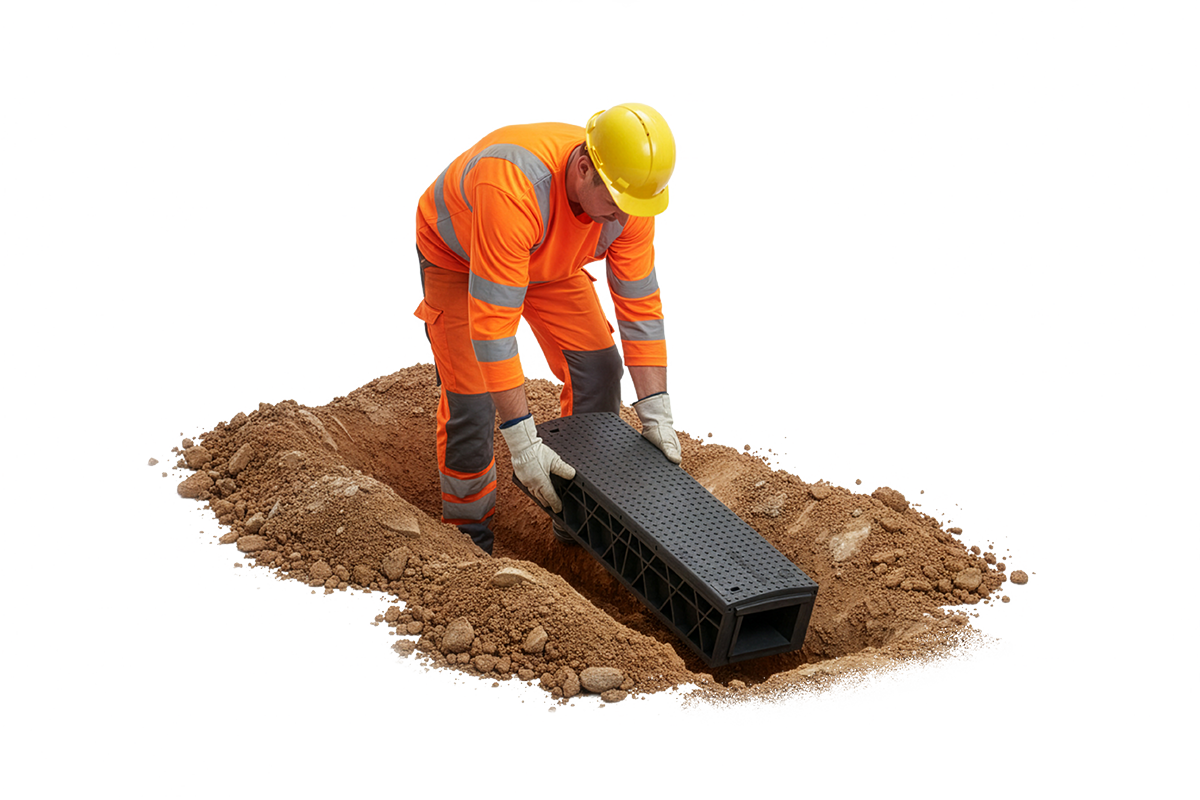

X-Duct 240 is supplied as a complete system with a lockable cover. Sizes 350–1000 are assembled on site from separate side and bottom elements, with covers and fittings selected to match the project.

The model, cover and installation arrangement should reflect the project’s loading and operating requirements.

Part of the UniSeals IQ system

The IQ X-Duct Cable Trough System integrates seamlessly with these products. Together, they form a complete and integrated system for cable routing, protection, access and connection.

Modular cable chambers. Low weight and high strength.

Modular multi-duct system in HDPE for cable routing and protection.

Access cover solutions combining composite materials and steel.

Plan your installation

Download the IQ X-Duct datasheet for product dimensions, technical drawings, cover options and specifications.
Contact us for project-specific guidance and drawings for X-Duct 800 and 1000.

Find the right X-Duct configuration

Tell us about your cable route, capacity requirements and installation conditions. We can help you select the appropriate X-Duct size, cover and fittings.
